The OBD-II code P01600 doesn’t directly exist in most diagnostic code systems (as it falls outside standard P-codes). However, you may mean something like P0106, which relates to the Manifold Absolute Pressure (MAP) sensor or Barometric Pressure (BARO) sensor.
If you’re referring to a sensor performance or range issue, here’s how the typical MAP or BARO sensor-related error might be understood:
Code Explanation
P0106: Manifold Absolute Pressure (MAP) Sensor Circuit Range/Performance Problem
This indicates that the MAP sensor’s output voltage is outside the expected range compared to engine load and RPM. Essentially, the engine control module (ECM) detects a discrepancy in pressure readings.
Symptoms of the Issue
1. Poor Engine Performance: Hesitation or stalling during acceleration.

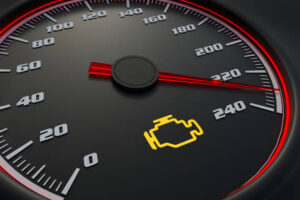

2. Check Engine Light (CEL): The MIL (Malfunction Indicator Lamp) will illuminate.
3. Rough Idle: The engine may idle unevenly.
4. Reduced Fuel Efficiency: Incorrect air/fuel mixture impacts mileage.
5. Black Smoke: May occur due to rich fuel mixture.
Causes of OBD Code P0106
1. Faulty MAP Sensor: The sensor itself may be damaged or failing.
2. Wiring Issues: Loose, corroded, or damaged connections to the MAP sensor.
3. Vacuum Leaks: An air leak in the intake manifold can affect pressure readings.
4. Clogged or Dirty Sensor: Debris buildup can cause inaccurate readings.
5. ECM Issues: Faulty ECM may misinterpret sensor data.Â
Diagnosis Steps
1. Visual Inspection:Check the MAP sensor’s wiring and connectors.Look for vacuum leaks around the intake manifold.
2. Read Live Data:Use an OBD-II scanner to monitor the MAP sensor voltage. It should change with throttle position.
3. Test the Sensor:Use a multimeter to test voltage output or perform a smoke test for leaks.
4. Compare with BARO Sensor:Ensure that MAP and BARO sensors correlate under different conditions.
Possible Fixes
1. Replace the MAP Sensor: If testing confirms it’s faulty.
2. Repair Wiring: Fix loose or damaged connectors and wires.
3. Fix Vacuum Leaks: Seal or replace damaged hoses or gaskets.
4. Clean the MAP Sensor: If it’s clogged, use an appropriate cleaner.
5. Update ECM Software: If there’s a known issue with the software logic.
Addressing the P0106 code is important to prevent potential engine damage and ensure optimal vehicle performance. If you experience symptoms associated with this code, it’s advisable to consult a qualified technician for accurate diagnosis and appropriate repairs.​
For a visual explanation and further insights, you might find the following video helpful:
